1” In-Line 2-Way Normally Closed Poppet Valve
TS-SPE16T2000-B210
TS-SPE16A2000-B210
Externally piloted by up to 3,000 psi nitrogen or helium actuation gas
High flow capacity (Cv = 21)
Normally closed
2,000 psi MEOP
Current draw < 0.5 A
Lightweight – under 2.2 lbs
Service fluids: GN2, N2O, GHe, RP-1
Available with AN or tube stub connections

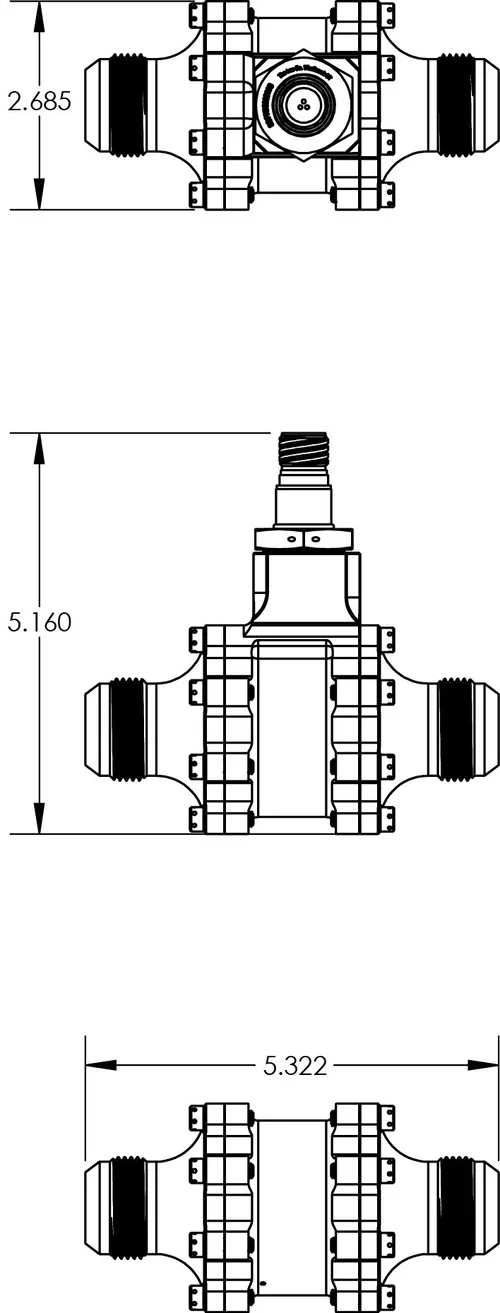

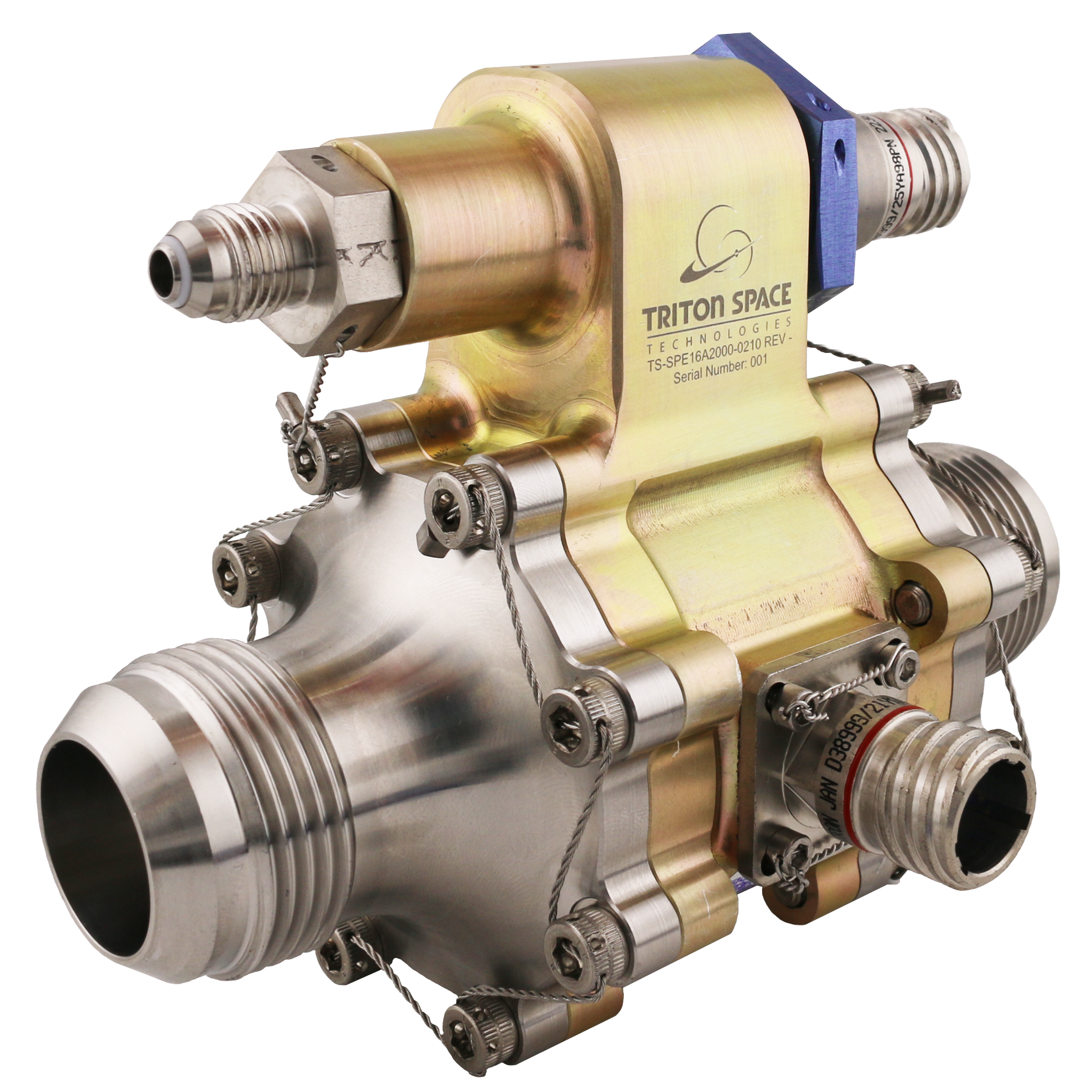

The TS-SPE16A2000-B210 from Triton Space Technologies is a high-flow-rate, in-line poppet solenoid valve with 1” (AN-16) inlet and exit fittings. This valve is pilot actuated by a 3-way miniature solenoid valve that utilizes external pressure to actuate the main poppet resulting in fast actuation timing. This valve is designed specifically for service in demanding high-pressure systems and provides high-flow capacity, compact and robust control. The TS-SPE16A2000-B210 is purpose built for 21st century spaceflight feed systems. Contact us today for more information or to place your order.

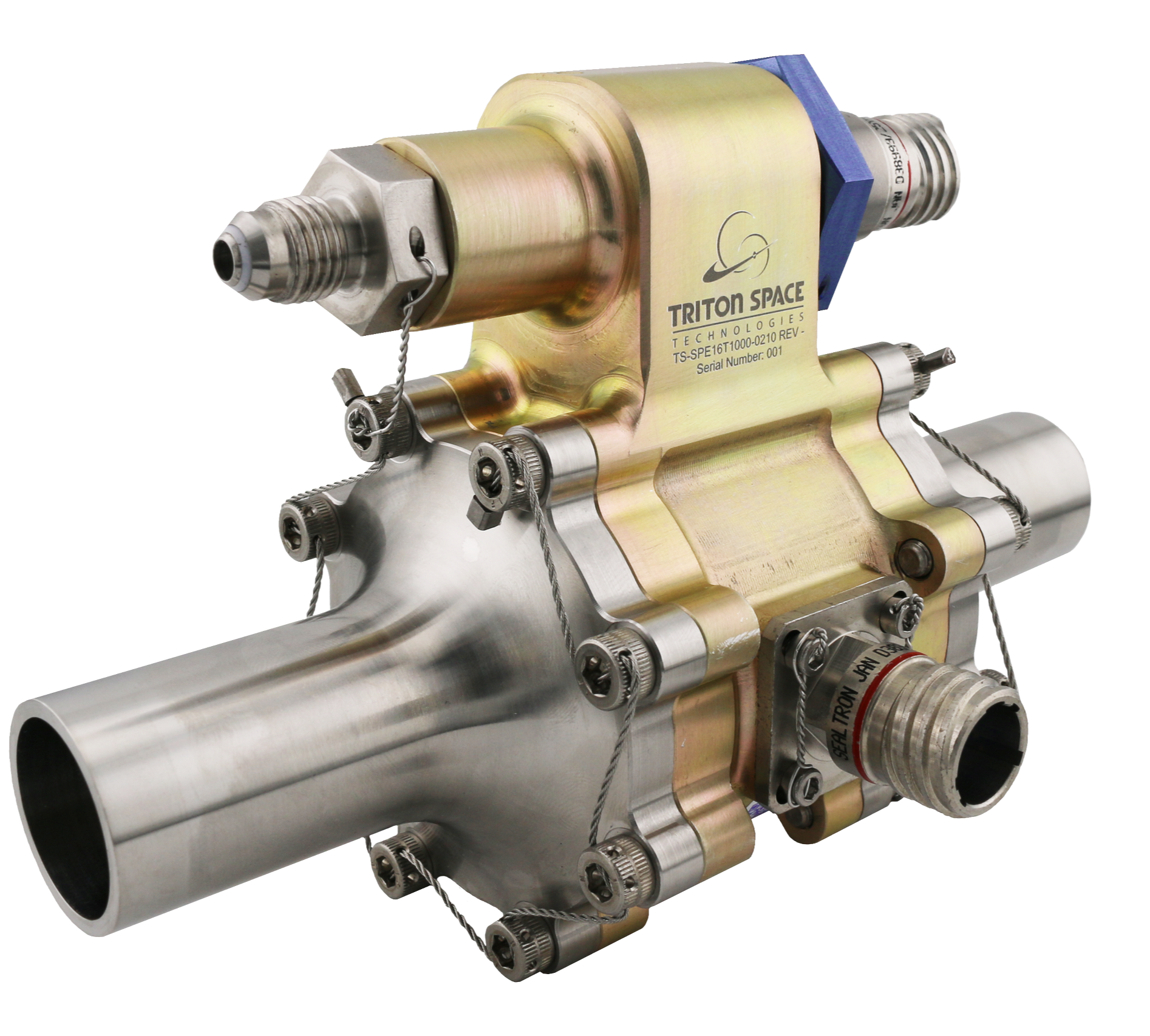

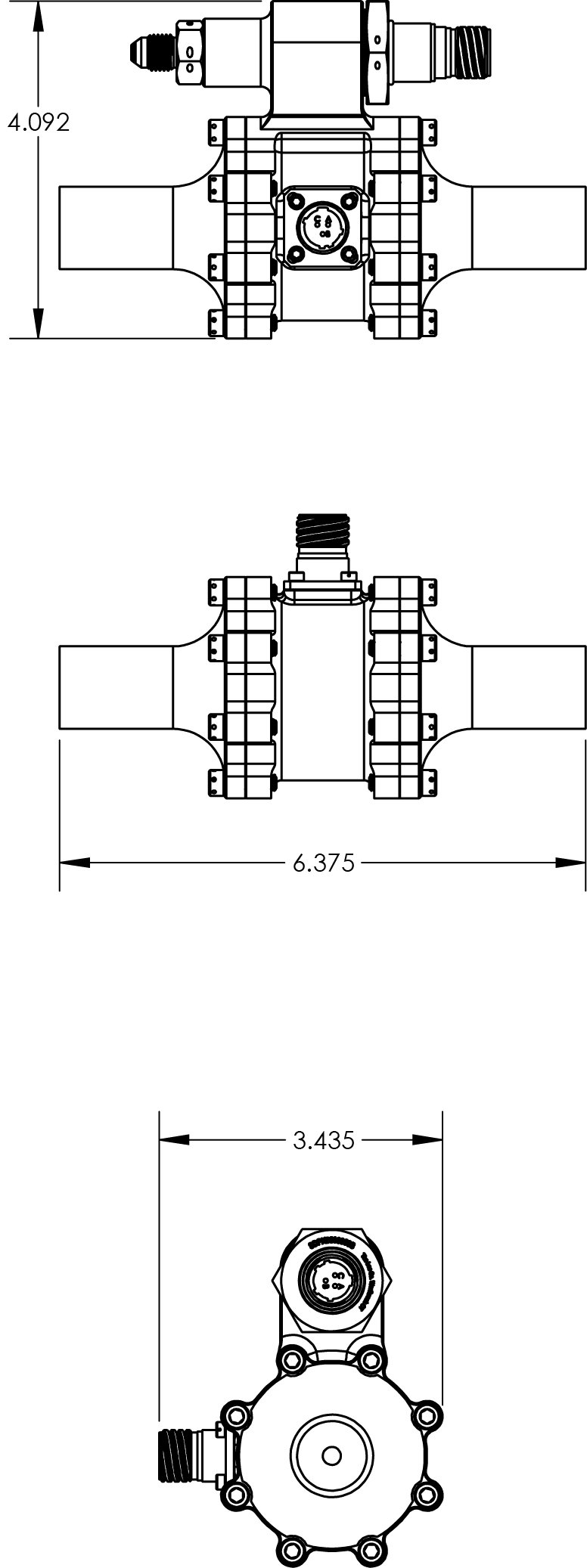

The TS-SPE16T2000-B210 from Triton Space Technologies is a high-flow-rate, in-line poppet solenoid valve with 1” tube stub inlet and exit fittings. This valve is pilot actuated by a 3-way miniature solenoid valve that utilizes external pressure to actuate the main poppet resulting in fast actuation timing. This valve is designed specifically for service in demanding high-pressure systems and provides high-flow capacity, compact and robust control. The TS-SPE16T2000-B210 is purpose built for 21st century spaceflight feed systems. Contact us today for more information or to place your order.
Product Overview
Key Features
1” In-Line 2-Way Normally Closed Poppet Valve
TS-SPE16A2000-B210
TS-SPE16T2000-B210
Externally piloted by up to 3,000 psi nitrogen or helium actuation gas
High flow capacity (Cv = 21)
Normally closed
2,000 psi MEOP
Current draw < 0.5 A
Lightweight – under 2.2 lbs
Service fluids: GN2, N2O, GHe, RP-1
Available with AN or tube stub connections
-
The TS-SPE16A2000-B210 from Triton Space Technologies is a high-flow-rate, in-line poppet solenoid valve with 1” (AN-16) inlet and exit fittings. This valve is pilot actuated by a 3-way miniature solenoid valve that utilizes external pressure to actuate the main poppet resulting in fast actuation timing. This valve is designed specifically for service in demanding high-pressure systems and provides high-flow capacity, compact and robust control. The TS-SPE16A2000-B210 is purpose built for 21st century spaceflight feed systems. Contact us today for more information or to place your order.
-
The TS-SPE16T2000-B210 from Triton Space Technologies is a high-flow-rate, in-line poppet solenoid valve with 1” tube stub inlet and exit fittings. This valve is pilot actuated by a 3-way miniature solenoid valve that utilizes external pressure to actuate the main poppet resulting in fast actuation timing. This valve is designed specifically for service in demanding high-pressure systems and provides high-flow capacity, compact and robust control. The TS-SPE16T2000-B210 is purpose built for 21st century spaceflight feed systems. Contact us today for more information or to place your order.
